SPECIFICATIONS

Brand Name: QIACHIP

Use: Universal

Use: Lighting

Use: Electric Door

Use: Automated curtains

Use: SWITCH

Origin: Mainland China

Hign-concerned Chemical: none

Wireless Communication: RF

Support APP: No

Certification: CE

Frequency: 433 MHz

Channel: 1

Package: Yes

Model Number: Universal Fan Lamp Controller AC 100-240V Ceiling Fan Control

Current: 10A

Wireless type: RF433

Maximum power consumption: <800W

Choice: yes

semi_Choice: yes



Name:Fan light

Operating voltage:110V/220V depending on the model

Maximum load power:＜300W fan/＜200W LDE lamp

Standby power consumption: ＜0.5W

Working temperature: -20 degrees Celsius ☞ 80 degrees Celsius

Control method: RF433Mhz remote control

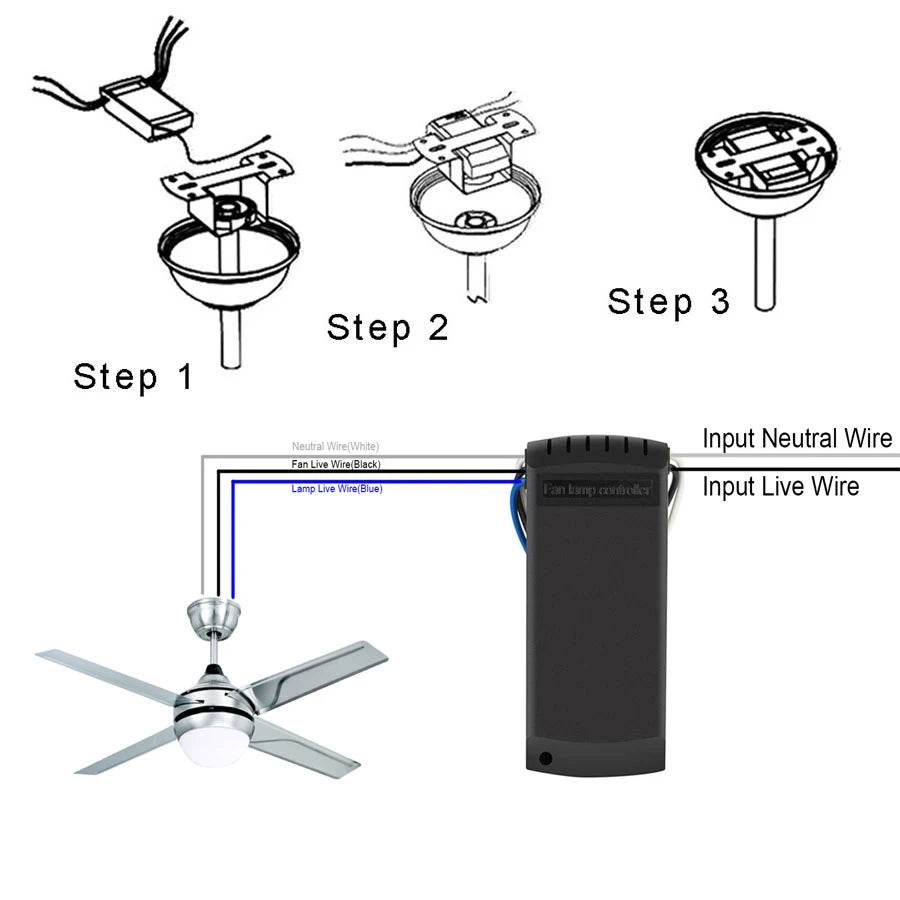

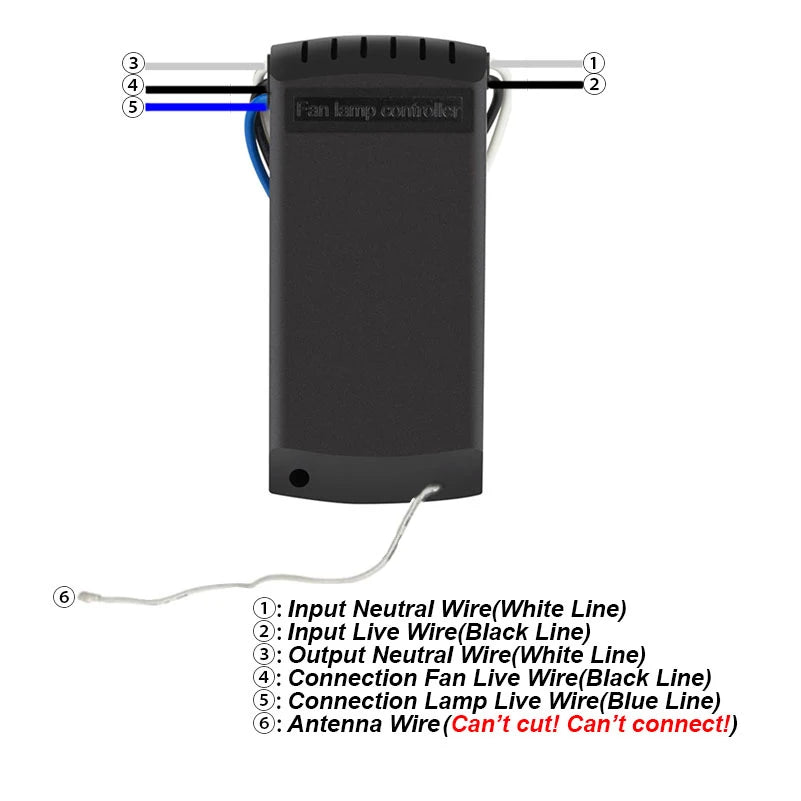

Wiring method: Load and neutral wire



According to the actual use of the voltage to choose!

Remote control Specification :

Battery : AAA 1.5V 7# battery  X 2 (package not incldue)

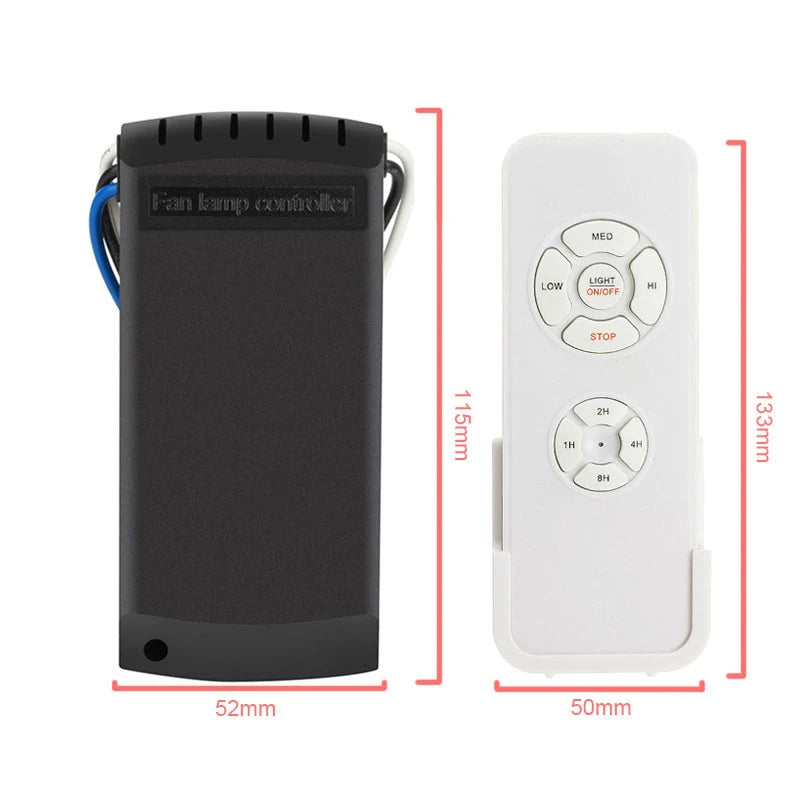

Size:

Remote control: 5.2 x 1.97 x 0.7inch (133mm x 50mm x 18mm)

Receiver: 4.5 x 2 x 1inch  (115mm x 52mm x 25mm)

Note：Make sure that there is enough space at the top of the fan to install the receiver！

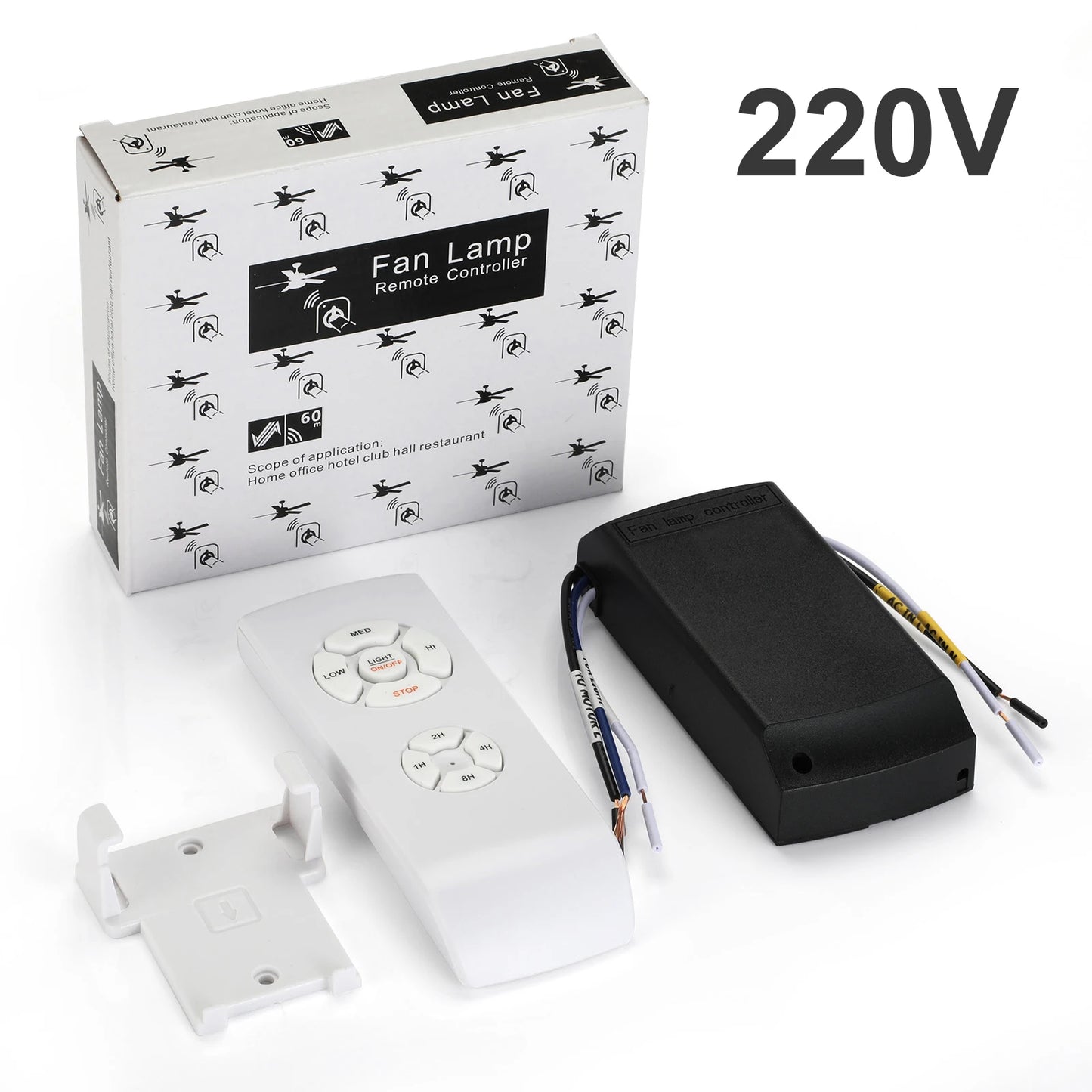

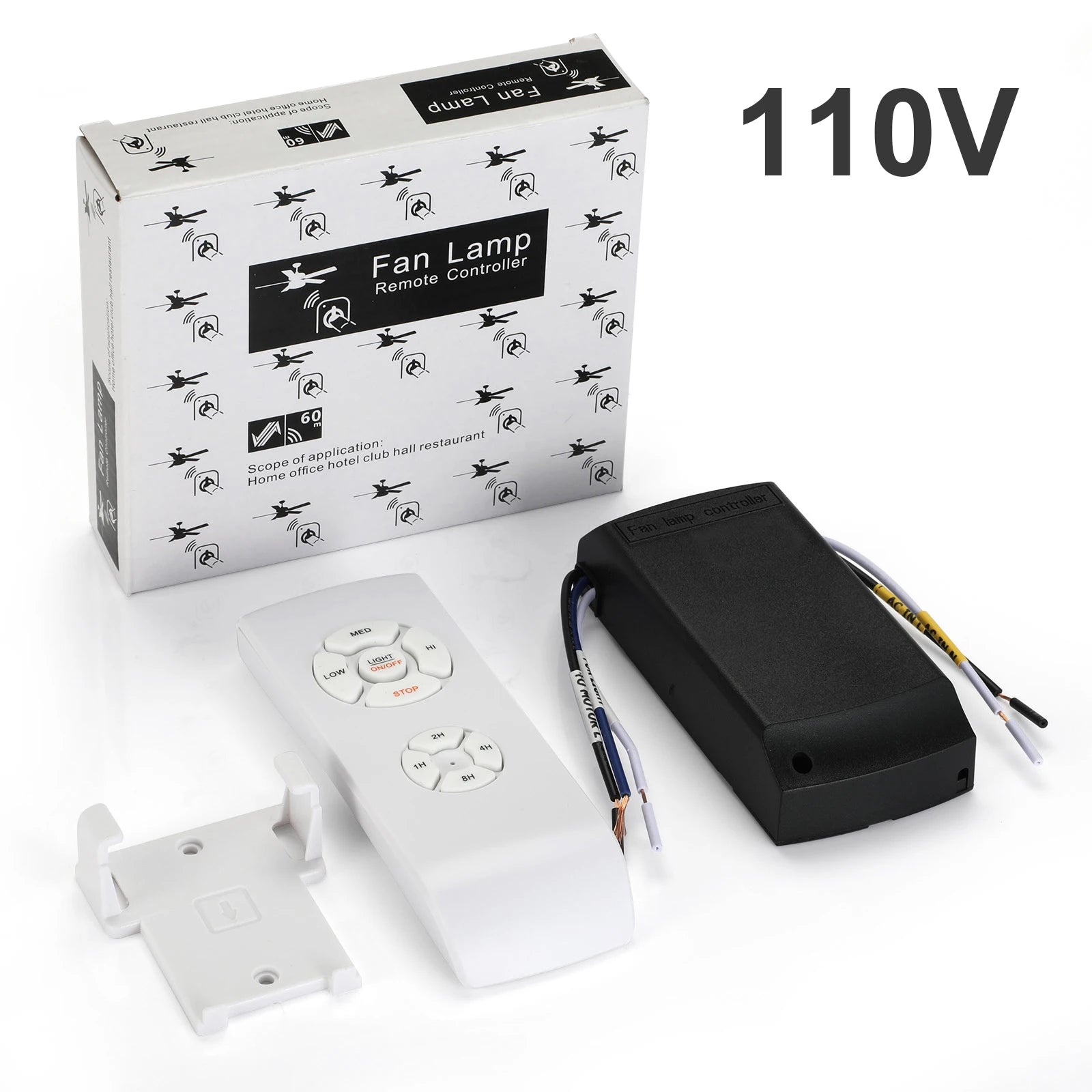

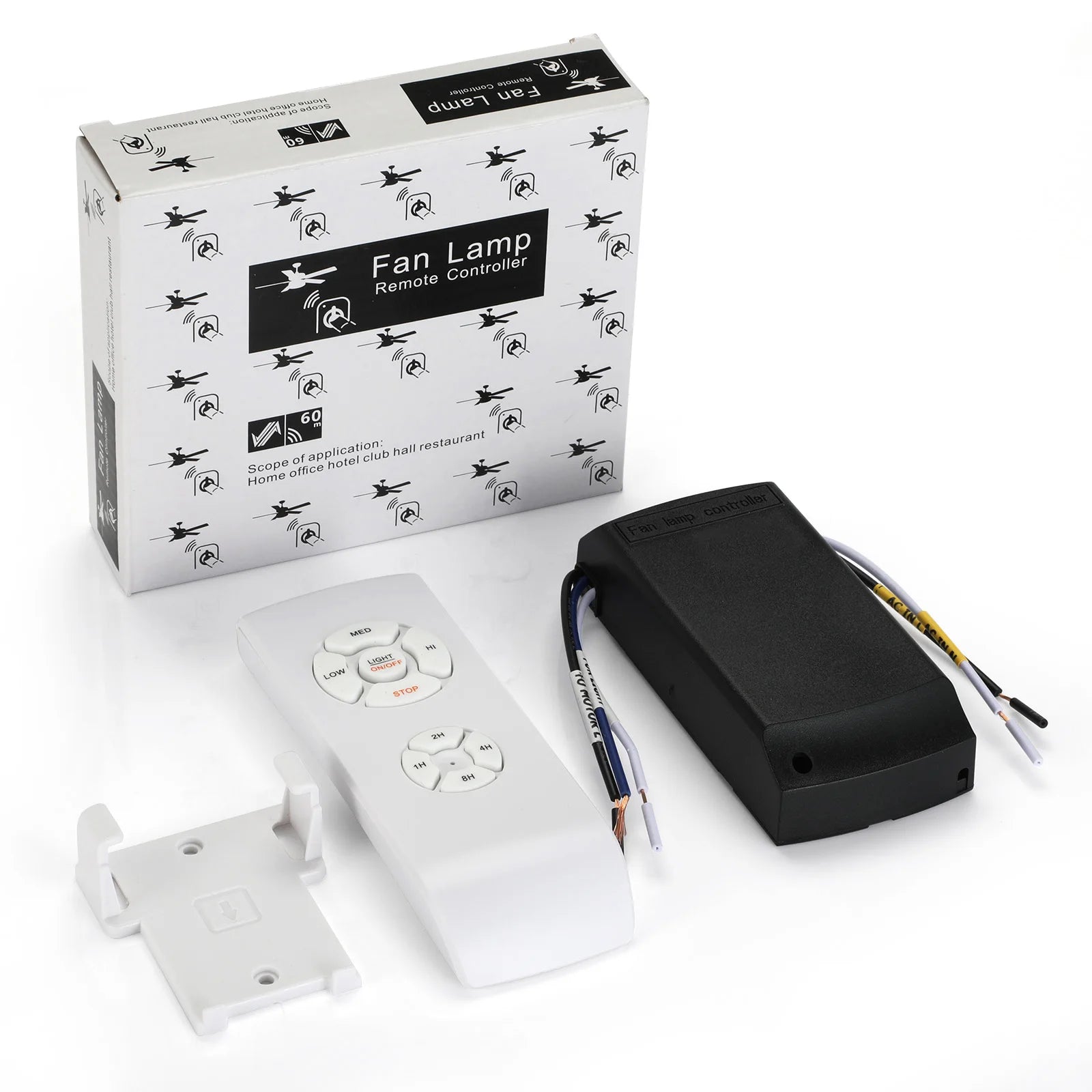

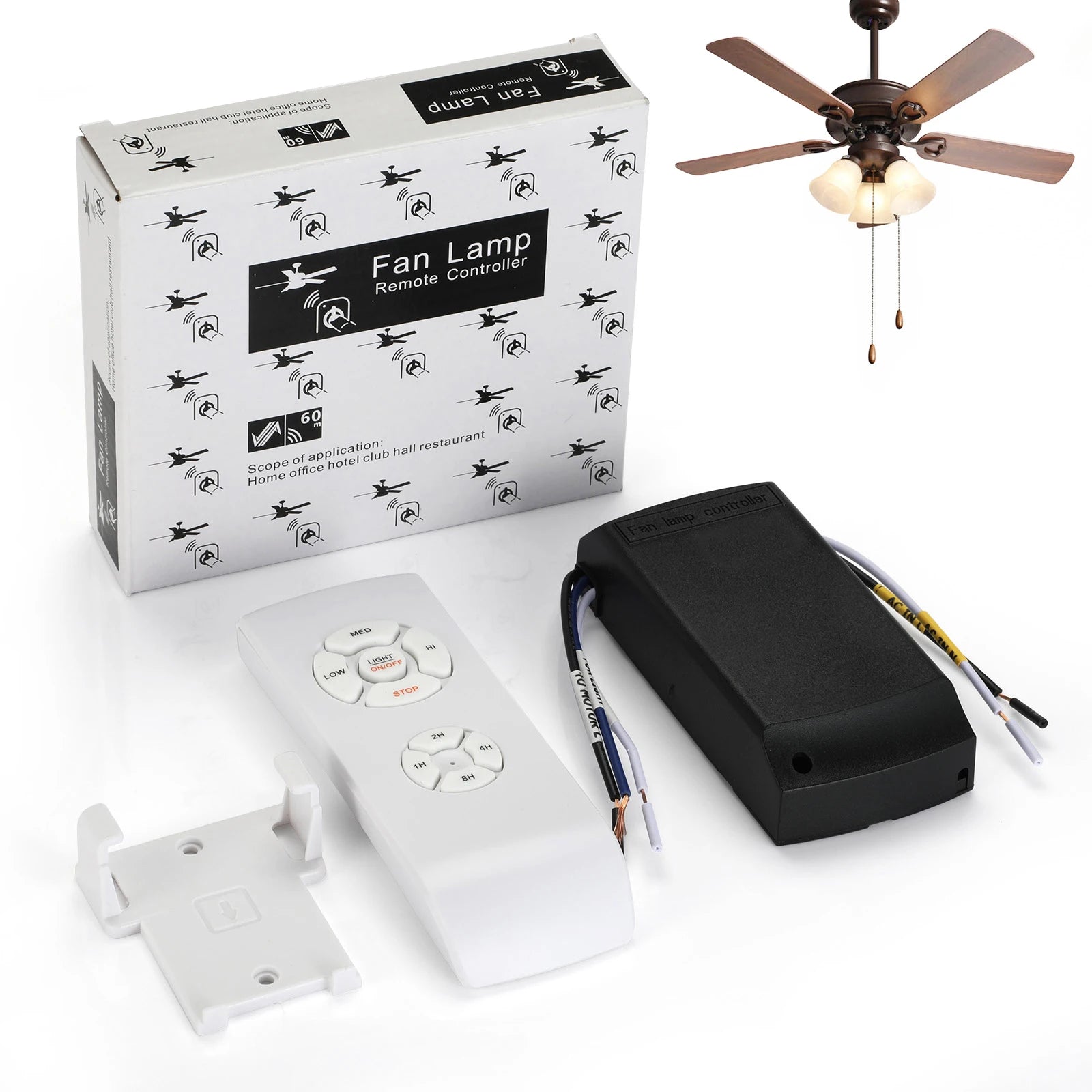

Package list:

Remote control     x1   （not include battery）

Remote shelf       x1

Receiver              x1
